Wall profiles
Trapezoidal profile 20
- Effective width: 1100mm
- Profile height: 20mm
- Minimum slope: 1/5 ( 11°), double side lap 1/7 (8 °)
- Minimum length: 1000 mm
- Recommended maximum length: 8000 mm
- Thickness: 0,45mm, 0,50mm, 0,60mm
Coatings
- Aluzinc 185+SPT: 0,45mm, 0,50mm
- DX51D+Z350: 0,50mm, 0,60mm
- Matt polyester: 0,50mm
- Polyester: 0,45mm, 0,50mm
- PUR: 0,50mm, 0,60mm
Available with DRIPSTOP anti-condensation membrane
Cladding profile H2
- Effective width: 1250mm
- Profile height: 2mm
- Minimum length: 1000 mm
- Recommended maximum length: 5000 mm
Coatings
- Aluzinc 185+SPT: 0,45mm, 0,50mm
- DX51D+Z350: 0,50mm, 0,60mm
- Matt polyester: 0,50mm
- Polyester: 0,45mm, 0,50mm
- PUR: 0,50mm
Trapezoidal profile 15
- Effective width: 1150mm
- Profile height: 15mm
- Minimum slope: 1:5
- Minimum length: 1000 mm
- Recommended maximum length: 9000 mm
- Thickness: 0,45mm, 0,50mm, 0,60mm
Coatings
- Aluzinc 185+SPT: 0,45mm, 0,50mm
- DX51D+Z350: 0,50mm, 0,60mm
- Matt polyester: 0,50mm
- Polyester: 0,45mm, 0,50mm
- PUR: 0,50mm, 0,60mm
Wall profile sheet Karu 1
- Minimum length: 1000 mm
- Recommended maximum length: 3000 mm
- Thickness: 0,45mm, 0,50mm, 0,60mm, 0,70mm
Coatings
- Aluzinc 185+SPT: 0,45mm, 0,50mm
- DX51D+Z350: 0,50mm, 0,60mm
- Matt polyester: 0,50mm
- Polyester: 0,45mm, 0,50mm
- PUR: 0,50mm, 0,60mm
Wall profile sheet Karu 2
- Minimum length: 1000 mm
- Recommended maximum length: 3000 mm
- Thickness: 0,45mm, 0,50mm, 0,60mm, 0,70mm
Coatings
- Aluzinc 185+SPT: 0,45mm, 0,50mm
- DX51D+Z350: 0,50mm, 0,60mm
- Matt polyester: 0,50mm
- Polyester: 0,45mm, 0,50mm
- PUR: 0,50mm, 0,60mm

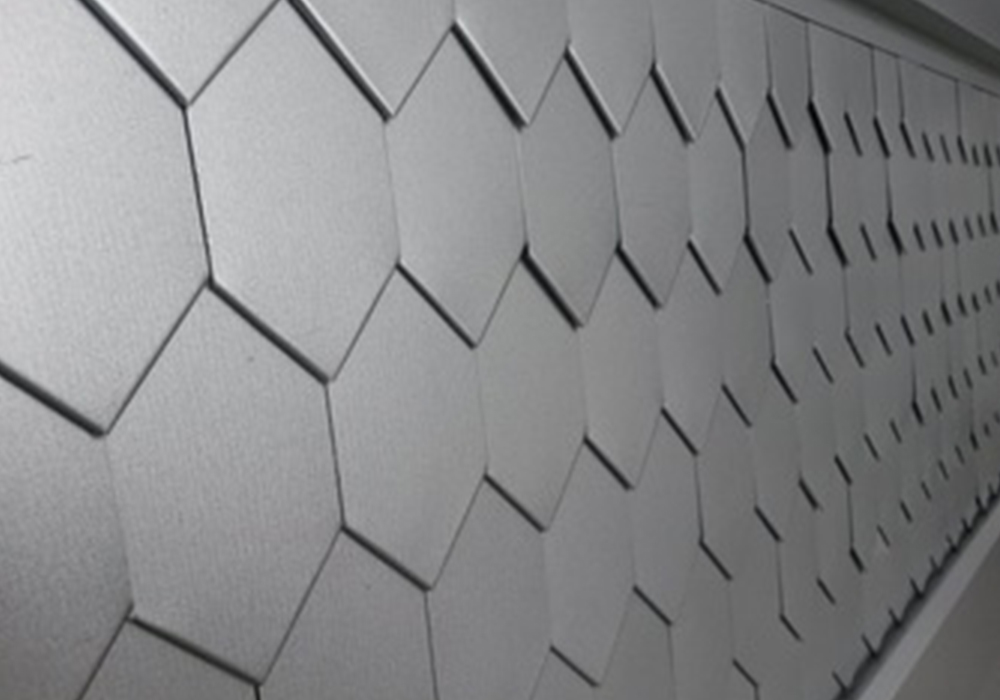

Wall profile sheet Karu honeycomb
- Thickness 0,45mm, 0,50mm, 0,60mm, 0,70mm
Pinnakatted
- Aluzinc 185+SPT: 0,45mm, 0,50mm
- DX51D+Z350: 0,50mm, 0,60mm
- Matt polyester: 0,50mm
- Polyester: 0,45mm, 0,50mm
- PUR: 0,50mm, 0,60mm
Development of the profile was co-financed by Enterprise Estonia (EAS).
